EV Charger — 32A 7kW GBT Portable / Mini Wallbox, LCD, Type B RCD, IP66/IP67 (5 m)
Order in the next [totalHours] hours %M minutes to get it between and
| Power | 7 kW | Current | 32 (adjustable 10/16/20/24/32) |
| Usage mode | Portable & Fixed (Wall-mounted) | Phases | Single-phase |
| Connector | GB/T (AC) | Operating temp | –25 °C to +50 °C |
| Altitude | < 2000 m | Ingress protection | IP66 (box), IP67 (plug) |

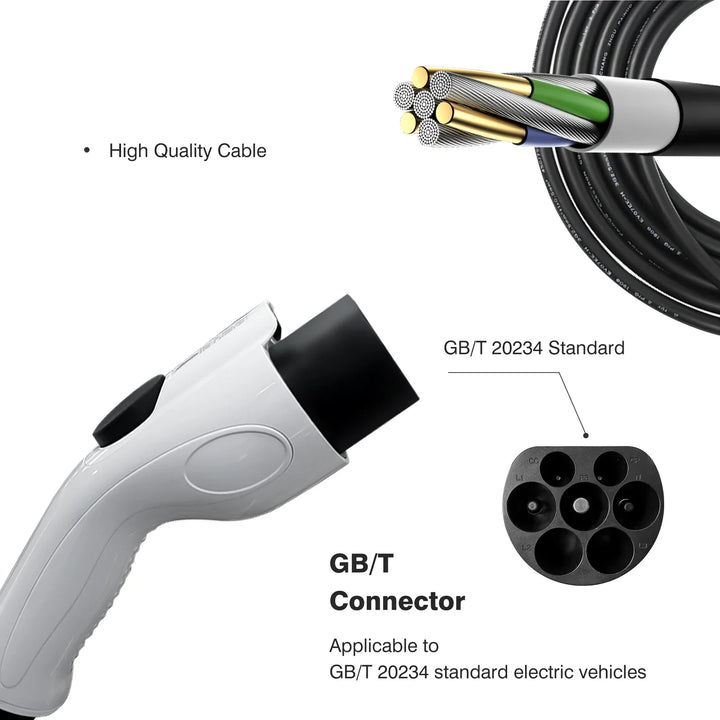

| Mechanical life | 10,000 insertions (no-load) | Cable core | Oxygen-free copper, TPU jacket |
| Cable | 5 m | RCD/Leakage | Type B (AC 30 mA + DC 6 mA) |
| Weight | 4 kg | LCD/Indicator | Yes (LCD + LED) |
| Protections | Over/under-voltage, over-load, short-circuit, over-temperature, PE protection, lightning, ESD; crush resistance 5000 N | Certification | CE |
A robust 7 kW (32A) GBT EV charger you can use as a portable unit or mount as a mini wallbox (brackets included). Built with an oxygen-free copper core and TPU cable for durability, the charger features an LCD, timed charging (double-click), and comprehensive safety protections. Rated IP66 for the control box and IP67 for the plug—ready for indoor/outdoor use from –25 °C to +50 °C.

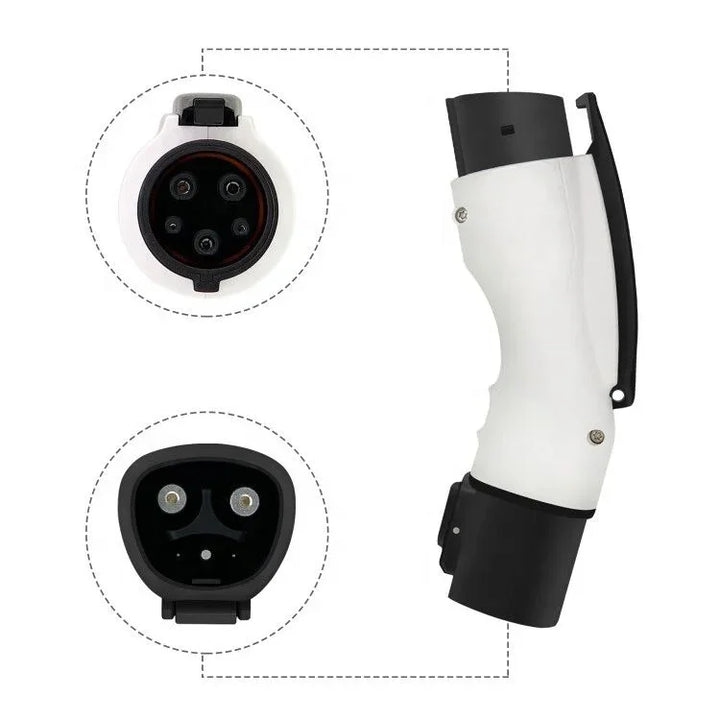

Connector note: This charger uses the GB/T (China) AC standard. Check your vehicle’s inlet and regional requirements. Adapters may be required outside GB/T markets.
Key benefits
-

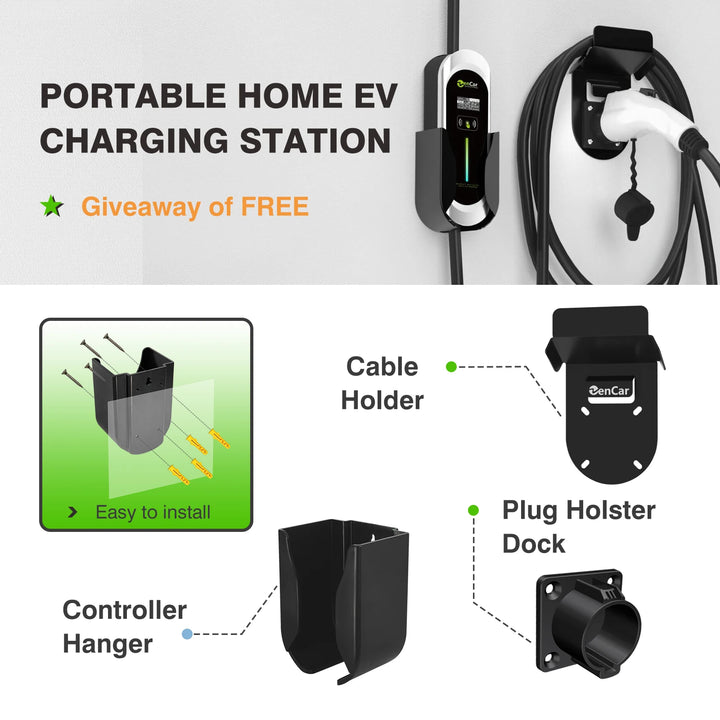

Dual-use: Portable or fixed wallbox (holders for plug, cable, and body included).
-
Solid performance: Up to 7 kW AC at 220 V, 32A max, 50–60 Hz.
-

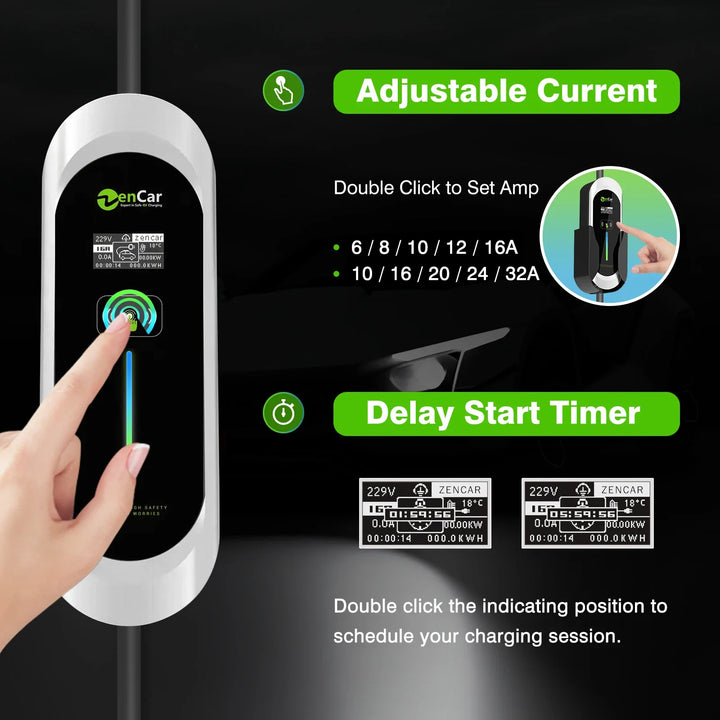

Adjustable current: 10 / 16 / 20 / 24 / 32A (intelligent current adjustment).
-

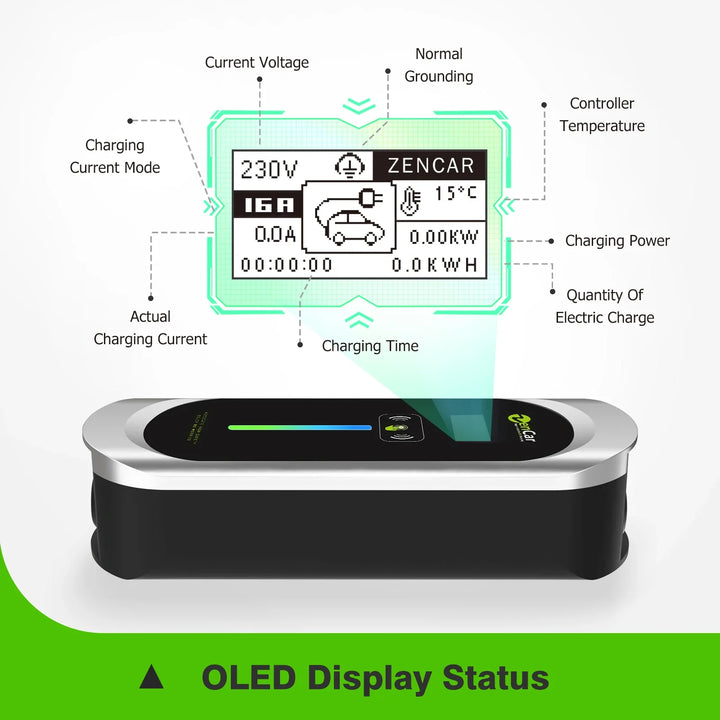

Clear status: LCD + LED indicator for real-time information.
-
All-weather build: IP66/IP67 protection, –25…+50 °C, 0–95% RH (non-condensing).
-
Safety first: Built-in Type B RCD (AC 30 mA + DC 6 mA) and multi-layer electrical protections.

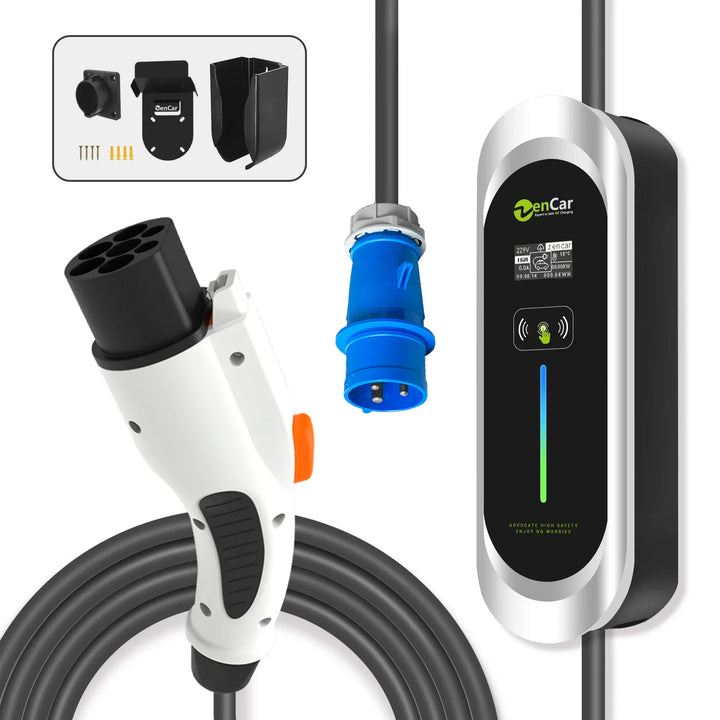

What’s in the box
-
EV Charger ×1
-
Wall-mount bracket ×1
-
Plug base ×1
-
5 m cable ×1
-
Plug ×1
-
Screw kit ×1
-
User manual ×1
-
Certificate of conformity ×1
Use cases
Home Charging — Fix it as a compact wallbox, limit current to match your circuit, and use timed charging to avoid peak tariffs.
On-the-Go — Keep it portable in your trunk for destinations with GB/T sockets.
Worksites / Garages — Rugged IP66/IP67 build with clear LCD status and full protection suite.
Compatibility
-
Vehicles with GB/T AC inlet (China standard). For other regions/vehicles, confirm compatibility and whether an adapter or different standard (e.g., Type 1 / Type 2) is required.
Power 7 kW Current 32 (adjustable 10/16/20/24/32) Usage mode Portable & Fixed (Wall-mounted) Phases Single-phase Connector GB/T (AC) Operating temp –25 °C to +50 °C Altitude < 2000 m Ingress...
